	DIS Floor Isolation System

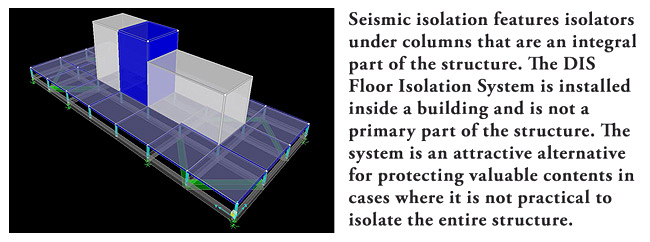

	Dynamic Isolation Systems is the leader in seismic isolation with over 300 building and bridge projects completed worldwide. The superior protection that isolation provides can now be achieved within a conventional building with the DIS Floor Isolation System.

What are the components of the DIS Floor Isolation System?

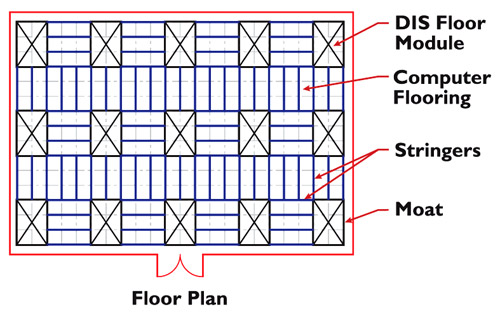

The systems consists of special multi-dimensional spring units and a combination of roller and slider bearings. A complete floor is assembled from a modules connected by stringers. Standard computer floor tiles make up the top surface of the isolated floor.
The floor system is available in standard heights of 13” to 24”. The 24” height is a direct substitute for conventional raised computer flooring.
Services and wiring run in the space beneath the stringers. Custom stringers are available to accommodate services, columns and geometric constraints.

When should floor isolation be considered?

Floor isolation is an ideal solution whenever seismic isolation of the entire building is not practical or economical. Many valuable objects and essential equipment require a higher level of seismic protection than a conventionally-designed structure can provide. These include data centers, servers, medical equipment, high-tech manufacturing process equipment, artwork and high-value products such as vaccines and medicines
